Product Name: FUETOR^®

Surgical technique: Follicular Unit Extraction (F.U.E)

Theory of Operation:
FUETOR^® is a hair transplantation system which is designed for Follicular Unit Extraction surgical technique. The follicles are extracted from the donor area by using a motorized harvesting tool assisted by suction. The extracted follicles are collected in a canister. The follicles are then loaded on to the implanter with the help of suction subsequently the loaded follicles are implanted to the recipient area with the help of user controlled pusher to desired depth.

Regulatory Classification: FDA Class II

Product Characteristics:
Overall Dimensions: (W x H x D): 525 mm x 1040 mm x 440 mm. Weight: 60 kgs (approx.) Two Sets of Harvesting and Implanting instruments work inline Motor driven, Suction Assisted Harvesting Adjustable pressure driven Implantation Disposable Tubes and Follicle Collection Canister Intuitive Touch Screen Interface Wire-less foot controls Electrical Requirement: 230 V 50 Hz

Tools

Swiss Make Harvester with CBS Canister

I. Harvester
Contra-angle attachment to micro- motor Sharp and blunt punches can be attached Three sizes of punch, 0.6 mm, 0.8 mm and 1.0 mm. TiN coated Punch for sharpness retention. Adjustable rotational speed Adjustable suction levels Saline storage for follicles Two types of contra-angles: 1:1 and 16:1

Patented# Implanter with Sync Technology

II. Implanter
0.6, 0.8 and 1.0mm follicle loading unit Suction assisted follicle loading Manual follicle implantation

Disposables tubing: 2 sets of disposable tubing

Tool holding tray: Every unit is provided with 2 reusable tool holding trays which can be sterilized by autoclaving, to hold sterilized tools during the procedure.

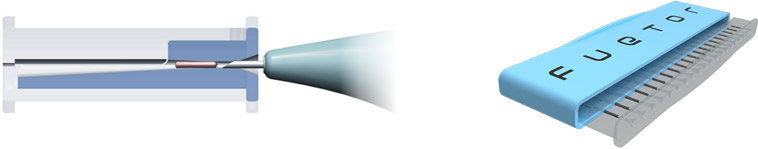

Follicle Loading Tray: Patented# Follicle Loading Tray improves the handling and loading of the follicles into Implanter. The follicle tray can hold 20 follicles.

Patented# Follicle Loading Tray
